| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWSP100-12AC/DC CONVERTER 12V 100W Triad Magnetics |
2,223 |
|
规格书 |
AWSP100 | Box | Active | Enclosed | 1 | 88 ~ 264 VAC | 12V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.65" H (199.0mm x 98.0mm x 42.0mm) |
|
AEU65-150AC/DC CONVERTER 15V 65W Triad Magnetics |
4,745 |
|
规格书 |
AEU65 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
|

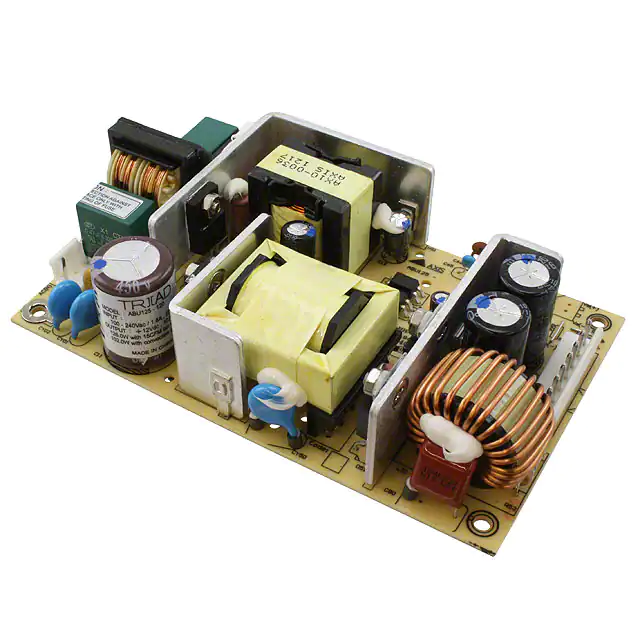

ABU125-120AC/DC CONVERTER 12V 100W Triad Magnetics |
3,278 |
|
规格书 |
ABU125 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.34 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
|

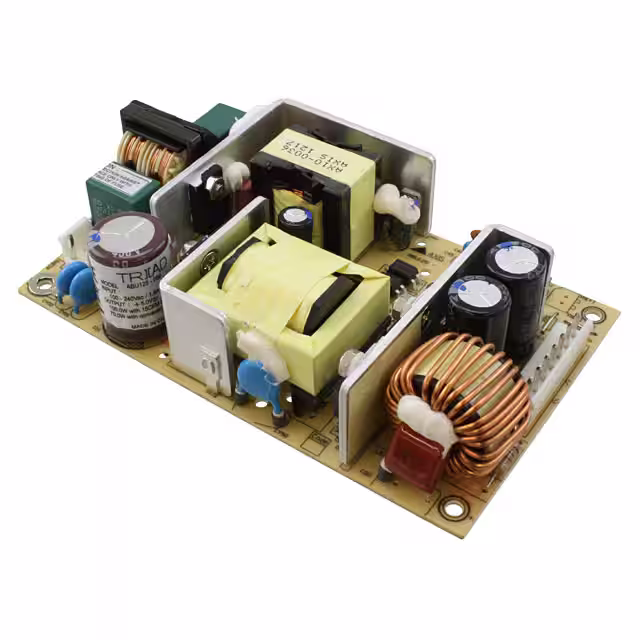

ABU125-050AC/DC CONVERTER 5V 70W Triad Magnetics |
4,402 |
|
规格书 |
ABU125 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 14 A | - | - | - | - | - | 70W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
|
ALS75-5AC/DC CONVERTER 5V 60W Triad Magnetics |
1,322 |
|
规格书 |
ALS75 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC | 5V | - | - | - | - | - | 12 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.65" H (127.0mm x 76.2mm x 42.0mm) |
|
|
AEU65-050AC/DC CONVERTER 5V 50W Triad Magnetics |
4,070 |
|
规格书 |
AEU65 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
|
|
AEU65-033AC/DC CONVERTER 3.3V 33W Triad Magnetics |
3,089 |
|
规格书 |
AEU65 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 3.3V | - | - | - | - | - | 10 A | - | - | - | - | - | 33W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
|

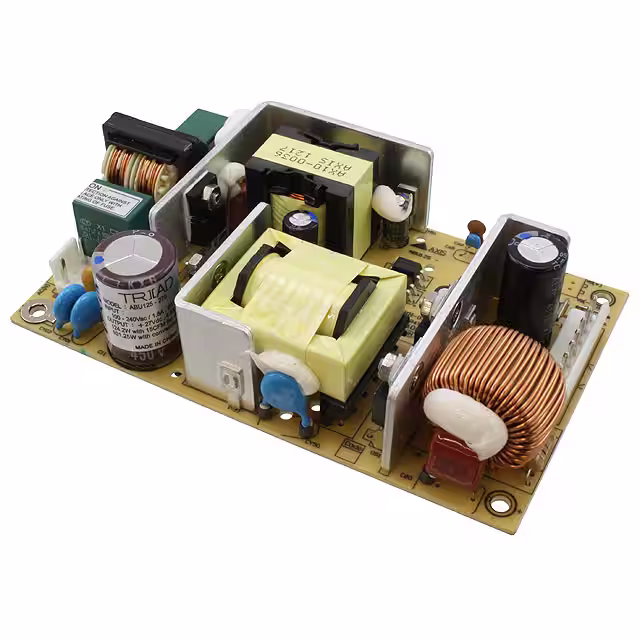

ABU125-270AC/DC CONVERTER 27V 100W Triad Magnetics |
3,452 |
|
规格书 |
ABU125 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 27V | - | - | - | - | - | 3.7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
|
|
AWSP100-5AC/DC CONVERTER 5V 100W Triad Magnetics |
3,831 |
|
规格书 |
AWSP100 | Box | Active | Enclosed | 1 | 88 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.65" H (199.0mm x 98.0mm x 42.0mm) |
|
AWSP150-5AC/DC CONVERTER 5V 150W Triad Magnetics |
4,897 |
|
规格书 |
AWSP150 | Box | Active | Enclosed | 1 | 88 ~ 264 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.97" H (199.0mm x 98.0mm x 50.0mm) |
