购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCS120PW36AC/DC CONVERTER 36V 120W TDK-Lambda |
1,214 |
|
规格书 |
SCS120PW (120W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 120W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 5.00" L x 3.00" W x 1.27" H (127.0mm x 76.2mm x 32.3mm) |
|
CUS150M-36/BAC/DC CONVERTER 36V 120W TDK-Lambda |
4,657 |
|
规格书 |
CUS150M (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 120W (150W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Baseplate, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.24" H (101.6mm x 50.8mm x 31.5mm) |
|

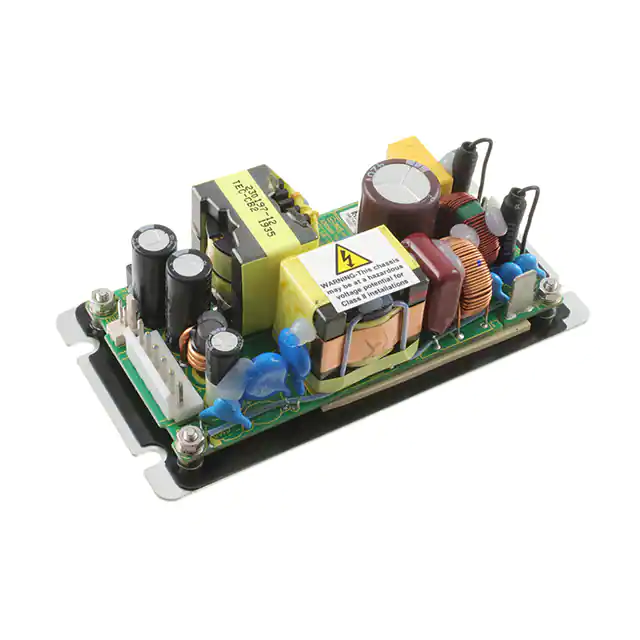

CUS150M-48/BAC/DC CONVERTER 48V 120W TDK-Lambda |
4,184 |
|
规格书 |
CUS150M (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (150W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Baseplate, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.24" H (101.6mm x 50.8mm x 31.5mm) |
|

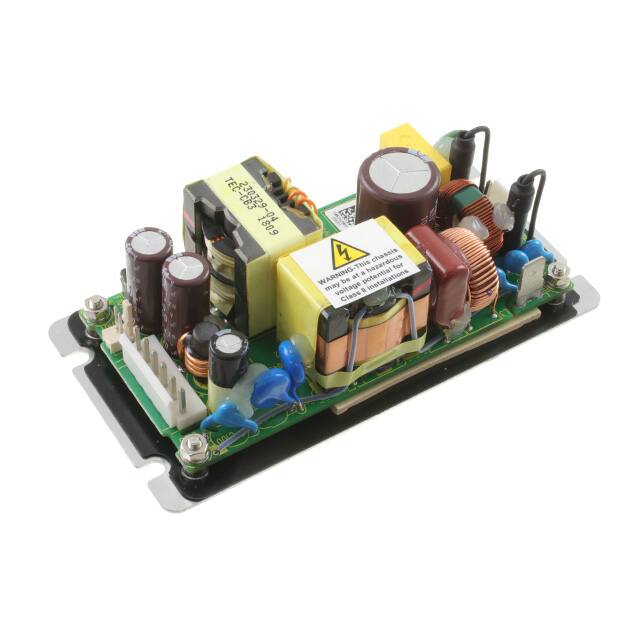

CUS150M-28/BAC/DC CONVERTER 28V 120W TDK-Lambda |
1,792 |
|
规格书 |
CUS150M (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 120W (150W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Baseplate, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.24" H (101.6mm x 50.8mm x 31.5mm) |
|
CUS150M-28/UAC/DC CONVERTER 28V 150W TDK-Lambda |
1,259 |
|
规格书 |
CUS150M (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 150W (150W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.57" L x 2.52" W x 1.52" H (116.0mm x 64.0mm x 38.5mm) |
|

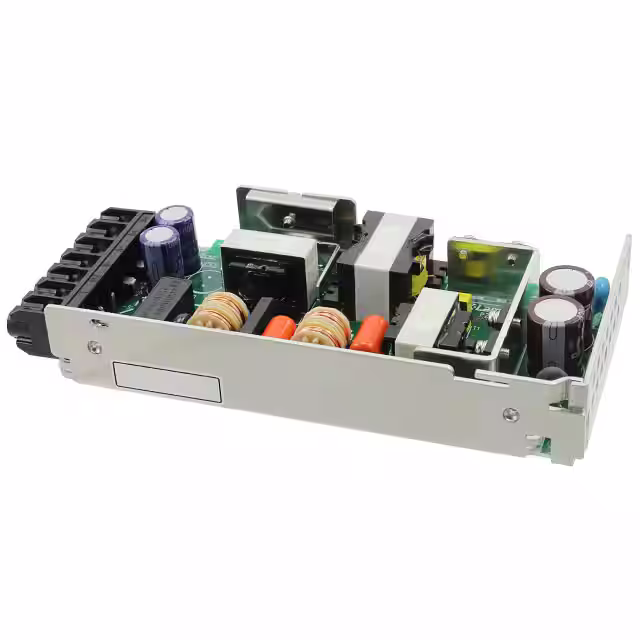

HWS100A-12/MEAC/DC CONVERTER 12V 100W TDK-Lambda |
2,386 |
|
规格书 |
HWS/ME (100W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 6.32" L x 1.32" W x 3.27" H (160.5mm x 33.5mm x 83.0mm) |
|
CUS500M1-32AC/DC CONVERTER 32V 301W TDK-Lambda |
2,092 |
|
规格书 |
CUS500M1 (500W) | Box | Active | Open Frame | 1 | 85 ~ 265 VAC | 32V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 301W (502W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | - | Chassis Mount | 5.00" L x 3.00" W x 1.46" H (127.0mm x 76.2mm x 37.1mm) |
|
|
CUS500M1-36AC/DC CONVERTER 36V 299W TDK-Lambda |
4,585 |
|
规格书 |
CUS500M1 (500W) | Box | Active | Open Frame | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 299W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | - | Chassis Mount | 5.00" L x 3.00" W x 1.46" H (127.0mm x 76.2mm x 37.1mm) |
|
CUS250M-24/JAC/DC CONVERTER 24V 250W TDK-Lambda |
4,050 |
|
规格书 |
CUS250M (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10.41 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.56" H (101.6mm x 50.8mm x 39.5mm) |
|
HWS100A-15/HDAC/DC CONVERTER 15V 105W TDK-Lambda |
2,757 |
|
规格书 |
HWS/HD (100W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 105W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.32" L x 1.12" W x 3.27" H (160.5mm x 28.5mm x 83.0mm) |
