购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMP1K2-HHHHHH-15AC/DC CONVERTER 24V 1200W MEAN WELL USA Inc. |
4,939 |
|
规格书 |
NMP (1200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 60 A | - | - | - | - | - | 1200W | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
|
|
NMP1K2-KKKKKK-15AC/DC CONVERTER 48V 1200W MEAN WELL USA Inc. |
1,854 |
|
规格书 |
NMP (1200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 30 A | - | - | - | - | - | 1200W | ITE (Commercial), Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
|

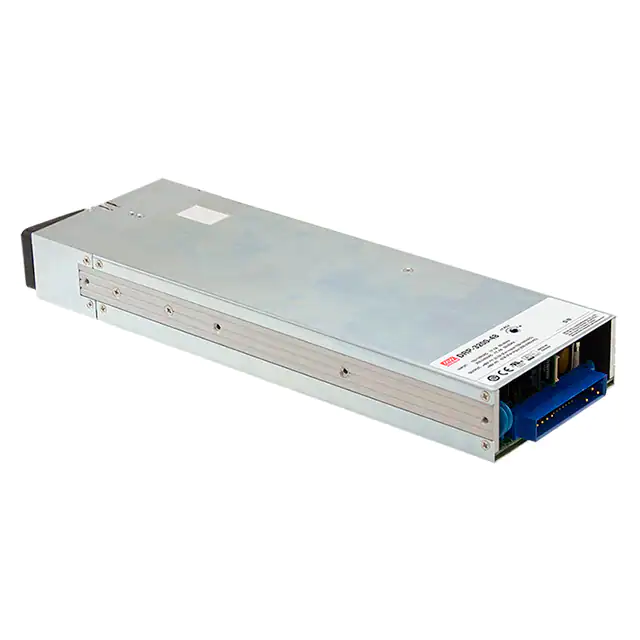

DRP-3200-24AC/DC CONVERTER 24V 3192W MEAN WELL USA Inc. |
4,135 |
|
规格书 |
DRP-3200 (3200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 133 A | - | - | - | - | - | 3192W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 12.80" L x 4.21" W x 1.61" H (325.1mm x 106.9mm x 40.9mm) |
|
PHP-3500-115PWR SUPP, BATT & COND MEAN WELL USA Inc. |
3,482 |
|
规格书 |
PHP-3500-HV (3.5kW) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 115V | - | - | - | - | - | 26.3 A | - | - | - | - | - | 3.025kW | ITE (Commercial) | 6 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, PMBus™, Remote On/Off, Universal Input | Chassis Mount | 14.96" L x 5.57" W x 2.36" H (380.0mm x 141.4mm x 60.0mm) |
|

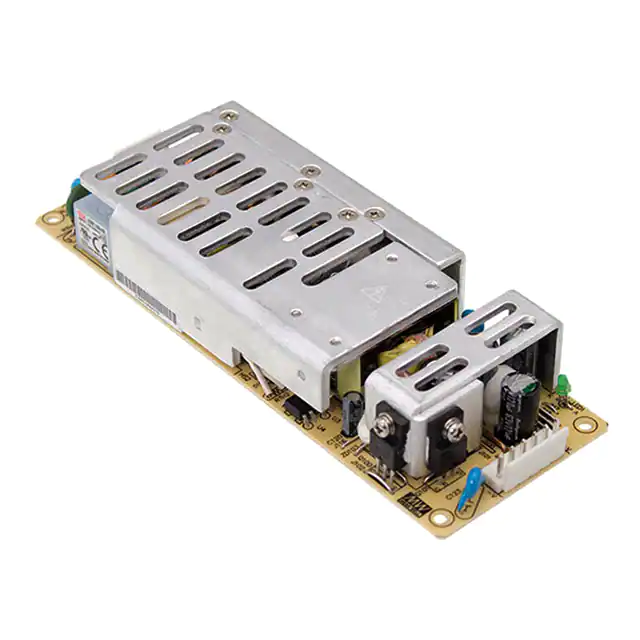

ASP-150-12AC/DC CONVERTER 12V 132W MEAN WELL USA Inc. |
1,445 |
|
规格书 |
ASP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 11 A | - | - | - | - | - | 132W | ITE (Commercial) | 4.25 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.65" L x 2.39" W x 1.12" H (169.0mm x 60.7mm x 28.5mm) |
|
|
ASP-150-15AC/DC CONVERTER 15V 143W MEAN WELL USA Inc. |
2,164 |
|
规格书 |
ASP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 9.5 A | - | - | - | - | - | 143W | ITE (Commercial) | 4.25 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.65" L x 2.39" W x 1.12" H (169.0mm x 60.7mm x 28.5mm) |
|
|
ASP-150-20AC/DC CONVERTER 20V 150W MEAN WELL USA Inc. |
1,488 |
|
规格书 |
ASP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 20V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 4.25 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.65" L x 2.39" W x 1.12" H (169.0mm x 60.7mm x 28.5mm) |
|
|
ASP-150-24AC/DC CONVERTER 24V 151W MEAN WELL USA Inc. |
3,946 |
|
规格书 |
ASP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | ITE (Commercial) | 4.25 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.65" L x 2.39" W x 1.12" H (169.0mm x 60.7mm x 28.5mm) |
|
|
ASP-150-48AC/DC CONVERTER 48V 154W MEAN WELL USA Inc. |
2,267 |
|
规格书 |
ASP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 154W | ITE (Commercial) | 4.25 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.65" L x 2.39" W x 1.12" H (169.0mm x 60.7mm x 28.5mm) |
|
ELP-75-12-CAC/DC CONVERTER 12V 75W MEAN WELL USA Inc. |
2,498 |
|
规格书 |
ELP-75 (75W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.68" L x 2.68" W x 1.30" H (195.0mm x 68.0mm x 33.0mm) |
